Auger
|
 |

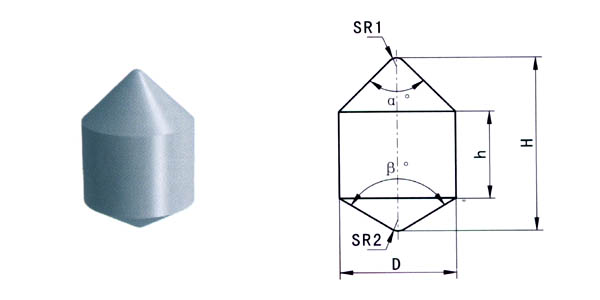

Type |
Dimension (mm) |
D |
H |
h |
SR1 |
SR2 |
¨»¡ã |
¦Â¡ã |
T1022178 |
8.99 |
16.80 |
10.80 |
1.90 |
1.60 |
77 |
140 |
3T102778B |
15.68 |
25.20 |
14.10 |
1.60 |
1.00 |
80 |
140 |
3T1022178B |
8.93 |
16.80 |
10.80 |
1.20 |
1.00 |
79 |
140 |
3T1021278B |
12.40 |
21.10 |
12.70 |
1.00 |
1.00 |
80 |
140 |
|
 |

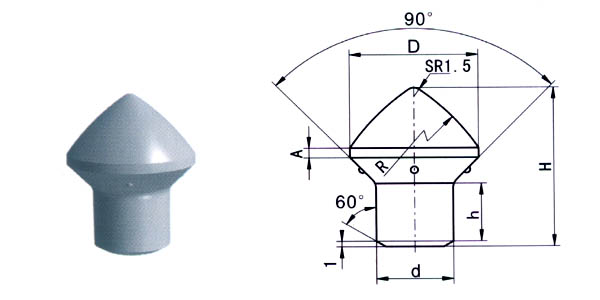

Type |
Dimension (mm) |
D |
d |
H |
H |
R |
A |
Dim. |
Tol. |
Dim. |
Tol. |
JC-§¶1822 |
18 |
-0.1
-0.4 |
10 |
-0.1
-0.4 |
22 |
8.0 |
30 |
1.5 |
JC-§¶2025 |
20 |
12 |
25 |
10.0 |
35 |
1.5 |
JC-§¶2027 |
20 |
12 |
27 |
10.5 |
35 |
4.0 |
JC-§¶2228 |
22 |
14 |
28 |
12.0 |
40 |
1.5 |
|
| |
|
