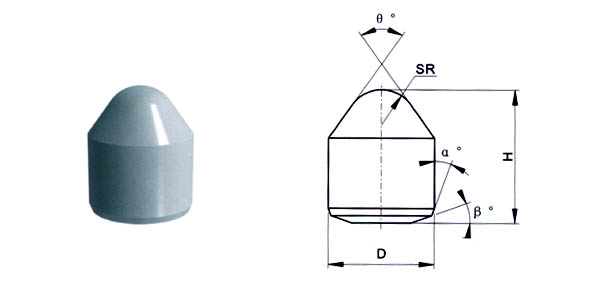

Conical buttons |
 |
Type |
Dimension (mm) |
D |
H |
¦È¡ã |
SR |
¨»¡ã |
¦Â¡ã |
SZ0812 |
8.25 |
12.2 |
70 |
3.0 |
20 |
27 |
SZ0913 |
9.25 |
13.3 |
70 |
3.0 |
20 |
26.5 |
SZ0915A |
9.25 |
14.9 |
55 |
3.0 |
20 |
26.5 |
SZ1016 |
10.25 |
16.2 |
70 |
4.0 |
20 |
26.5 |
SZ1016A |
10.25 |
16.2 |
52 |
4.0 |
20 |
26.5 |
SZ1116B |
11.30 |
15.9 |
52 |
4.0 |
20 |
26.5 |
SZ1117C |
11.30 |
17.4 |
60 |
4.0 |
20 |
26.5 |
SZ1118A |
11.30 |
18.0 |
55 |
4.0 |
20 |
26.5 |
SZ1218A |
12.35 |
17.9 |
55 |
4.8 |
20 |
28 |
SZ1218B |
12.35 |
18.0 |
55 |
4.0 |
20 |
27 |
SZ1219 |
12.35 |
18.9 |
70 |
4.8 |
20 |
28 |
SZ1422A |
14.35 |
21.9 |
55 |
5.0 |
20 |
14.5 |
SZ1424 |
14.35 |
23.9 |
67 |
3.0 |
20 |
15.5 |
SZ1420C |
14.35 |
20.0 |
71.5 |
5.0 |
30 |
15.5 |
|
 |

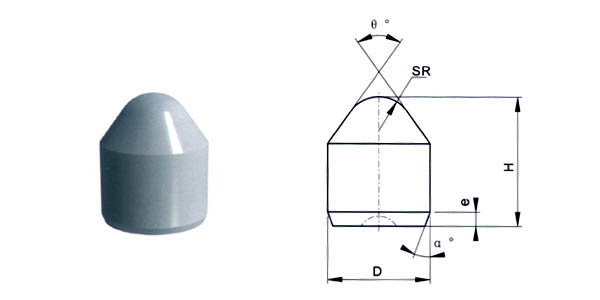

Type |
Dimension (mm) |
D |
H |
¦È¡ã |
SR |
e |
¨»¡ã |
SZ1420X-G10Q |
14.35 |
20.1 |
52 |
5.0 |
1.0 |
45 |
SZ1825A-E12Q |
18.23 |
25.0 |
55 |
6.0 |
1.2 |
20 |
SZ1926B-E21Q |
19.35 |
26.0 |
42 |
7.5 |
2.1 |
18 |
|
 |
Type |
Dimension (mm) |
D |
H |
¦È¡ã |
SR |
e |
¨»¡ã |
SZ0711-F2 |
7.25 |
11.0 |
70 |
2.8 |
0.7 |
30 |
SZ0812-E15 |
8.25 |
12.0 |
70 |
3.0 |
1.5 |
18 |
SZ0812-F2 |
8.25 |
12.0 |
70 |
3.0 |
0.7 |
30 |
SZ0914-F2 |
9.25 |
14.0 |
70 |
3.0 |
0.7 |
30 |
SZ1018C-X |
10.25 |
18.0 |
72 |
2.7 |
1.2 |
60 |
SZ1219-F2 |
12.35 |
18.9 |
70 |
4.8 |
0.7 |
30 |
SZ1222X-G10 |
12.35 |
22.0 |
52 |
2.0 |
1.0 |
45 |
SZ1320-F2 |
13.35 |
19.9 |
70 |
4.8 |
0.7 |
30 |
SZ1416B-E20 |
14.35 |
16.0 |
56 |
5.7 |
2.0 |
18 |
SZ1422C-E15 |
14.35 |
22.0 |
71 |
5.0 |
1.5 |
18 |
|
| |
| Standard of tolerances of D and H |
Diameter |
Height |
Nominal size |
Tolerance |
Nominal size |
Tolerance |
¡Ü10 |
¡À0.10 |
¡Ü11 |
¡À0.10 |
11 - 18 |
¡À0.15 |
£¾10 |
¡À0.15 |
18 ¨C 25 |
¡À0.15 |
£¾25 |
¡À0.20 |
|
|
