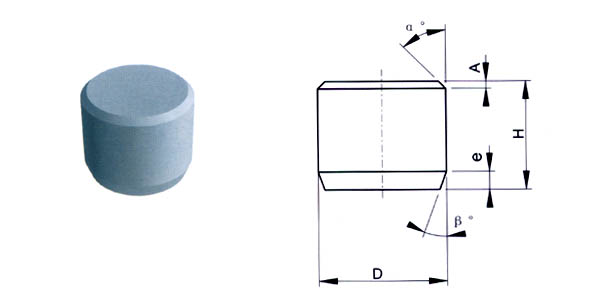

Flattop buttons |
 |
Type |
Dimension (mm) |
D |
H |
A |
¨»¡ã |
e |
¦Â¡ã |
SP0807-E15 |
8.25 |
6.9 |
0.5 |
45 |
1.5 |
18 |
SP0908-E15 |
9.25 |
8.1 |
0.45 |
45 |
1.5 |
18 |
SP1010A-G15 |
10.20 |
10.0 |
2.0 |
45 |
1.5 |
45 |
SP1008-E16 |
10.25 |
8.0 |
0.5 |
45 |
1.6 |
18 |
SP1010-E16 |
10.25 |
9.5 |
0.5 |
45 |
1.6 |
18 |
SP1108-E15 |
11.25 |
8.0 |
0.5 |
45 |
1.5 |
18 |
|
| |
| Standard of tolerances of D and H |
Diameter |
Height |
Nominal size |
Tolerance |
Nominal size |
Tolerance |
¡Ü10 |
¡À0.10 |
¡Ü11 |
¡À0.10 |
11 - 18 |
¡À0.15 |
£¾10 |
¡À0.15 |
18 ¨C 25 |
¡À0.15 |
£¾25 |
¡À0.20 |
|
|
