Type M10

For making rotary drill bits for coal and soft rock formations

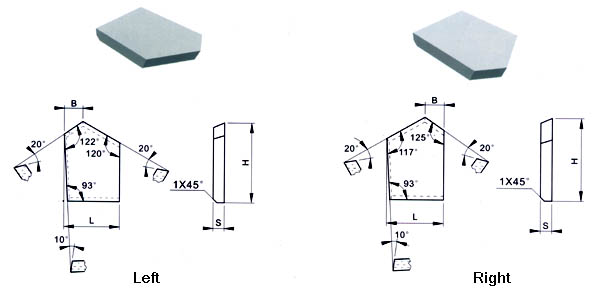

Type	Dimension (mm)
	L		H		S		B
	Dim.	Tol.	Dim.	Tol.	Dim.	Tol.	Dim.	Tol.
M1011R	11	±0.35	12	±0.35	2.5	±0.2	4	±0.3
M1011L	11	±0.35	12	±0.35	2.5	±0.2	4	±0.3
M1013R	12.5	±0.5	12	±0.35	3	±0.2	4	±0.3
M1030L	12.5	±0.5	12	±0.35	3	±0.2	4	±0.3
M1014R	14	±0.5	19	±0.4	3.8	±0.3	4	±0.3
M1014L	14	±0.5	19	±0.4	3.8	±0.3	4	±0.3
M1015AR	15	±0.5	19	±0.5	3	±0.3	5	±0.3
M1015AL	15	±0.5	19	±0.5	3	±0.3	5	±0.3
M1015R	15	±0.5	22	±0.5	3.0	±0.3	5	±0.3
M1015L	15	±0.5	22	±0.5	3.0	±0.3	5	±0.3
M1018R	18	±0.5	22	±0.5	6.0	±0.3	5	±0.3
M1018	18	±0.5	22	±0.5	6.0	±0.3	5	±0.3
