Type M20

For making auger tips in excavators

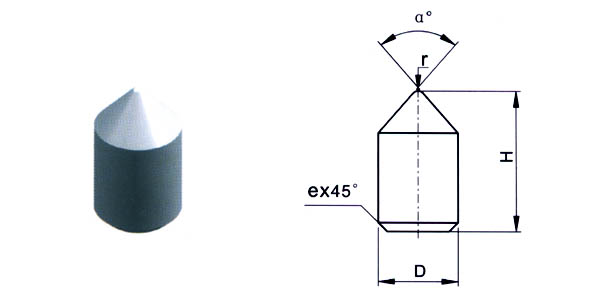

Type	Dimension (mm)
	D		H		r	ɑ°	e
	Dim.	Tol.	Dim.	Tol.	r	ɑ°	e
M2009	9	±0.3	16	±0.5	1.0	90	1.0
M2012A	12	±0.3	18	±0.5	1.5	82	1.0
M2012B	12	±0.3	20	±0.5	1.5	82	1.5
M2018	18	±0.4	32	±0.5	1.5	82	2.0
