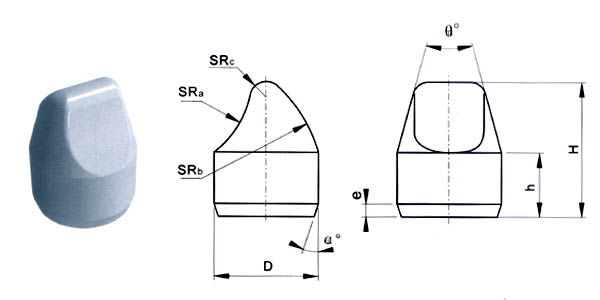

Spoon buttons
|
 |
Type |
Dimension (mm) |
D |
H |
h |
e |
¨»¡ã |
SRa |
SRb |
SRc |
¦È¡ã |
SS1621-E20 |
16.35 |
21.0 |
9.9 |
2.0 |
18 |
15.0 |
23.0 |
2.5 |
30 |
SS1623-E20 |
16.35 |
23.0 |
11.9 |
2.0 |
18 |
15.0 |
23.0 |
2.5 |
30 |
SS1624-E12 |
16.35 |
24.2 |
12.8 |
1.2 |
15 |
15.0 |
24.0 |
2.3 |
30 |
SS1930-E20 |
19.35 |
30.0 |
17.0 |
2.0 |
18 |
16.0 |
25.0 |
3.0 |
30 |
|
| |
| Standard of tolerances of D and H |
Diameter |
Height |
Nominal size |
Tolerance |
Nominal size |
Tolerance |
¡Ü10 |
¡À0.10 |
¡Ü11 |
¡À0.10 |
11 - 18 |
¡À0.15 |
£¾10 |
¡À0.15 |
18 ¨C 25 |
¡À0.15 |
£¾25 |
¡À0.20 |
|
|
