Type 41

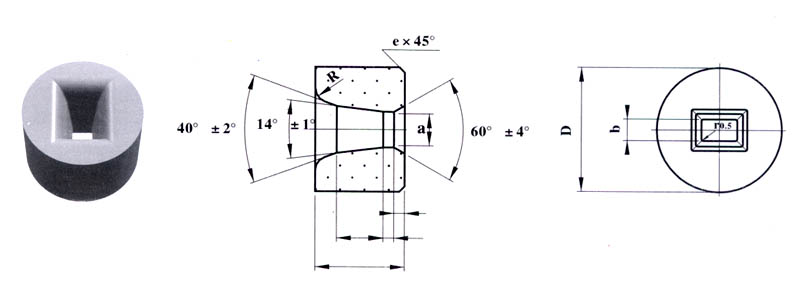

Carbide drawing die nibs for drawing rectangular
non-ferrous metal bars
Type
D
H
a
b
41-
30
21
6.7
4.7
2
35
25
7.7-9.7
5.7-7.7
3
45
11.7
5.7-9.7
3.5
50
28
13.7-17.6
6.7-15.7
4
60
19.2-23.6
7.7-14.7
5
All dimensions in (mm)
